The small piece of hardware supports Intel’s Core i5 and i3 series CPUs along with the new Celeron 867.
It is based on the Intel HM65 Express chipset and has only one SO-DIMM DDR3 memory slot that supports up to 4 GB or RAM.
For expansion we have two Mini-PCIe connectors; one being Mini-PCIe and one is mSATA. The board also has one SATA III 6 Gb/s port and one RTL8111E Gigabit controller made by Realtek.

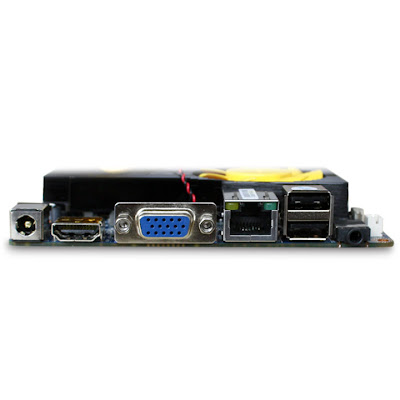

Audio is supported by the ALC662 High Definition Audio Codec also made by Realtek and has S/PDIF Optical ports next to the two USB 2.0 ports on the rear side.
The small Nano-ITX mainboard also comes with an HDMI port and a DC-in power jack for a 12V/19V power adapter and has one COM connector and one Fan header.
All this comes in a 12 cm by 12.8 cm package. That is 4.7 inch by 5 inch in imperial.
